Traceability in Structural Steel Fabrication

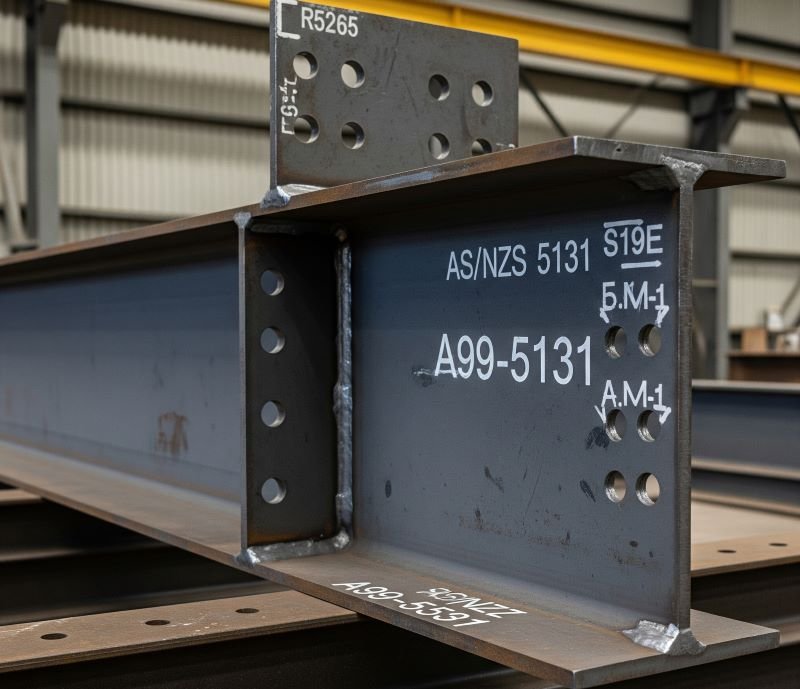

Hey there, steel fabricators and construction pros! If you’re in the world of structural steelwork in Australia or New Zealand, you’ve probably heard about the 2020 updates to AS/NZS 5131 (Structural Steelwork – Fabrication and Erection) and AS 4100 (Steel Structures). These standards are all about making sure our buildings and bridges are safe, high-quality, and fit for purpose. One big change? Traceability – the way we track steel materials and components to prove they’re up to standard.
In this post, I’ll break it down in simple terms: what traceability means, the three types introduced in the 2020 amendment, and how they apply to Construction Categories like CC2 and CC3. I’ll also give real-world examples for each type, tailored to a structural steel fabricator’s day-to-day work. Let’s dive in!
Why Traceability Matters
Traceability is like a paper trail for your steel. It tracks where materials come from, how they’re made, and whether they meet standards like AS/NZS 3678 (for structural steel) or AS/NZS ISO 3834 (for welding quality). It’s critical for proving your work is safe and compliant under Workplace Health and Safety (WHS) laws and the National Construction Code (NCC). Before 2020, AS/NZS 5131 often required full tracking of every piece for complex projects, which was time-consuming and costly.
The 2020 amendment made it more flexible by introducing three types of traceability –
- Lot,
- Piece-mark, and
- Piece – and aligning with global best practices.
AS 4100 now references 5131 for fabrication details, tying these standards together for better project outcomes.
The Three Types of Traceability (With Fabricator Examples)
The 2020 update to AS/NZS 5131 introduced three traceability types to make tracking more practical. Each type applies to a specific “extent” of components (main members or all parts) based on the project’s Construction Category (CC1 to CC4), which reflects risk and complexity. Here’s what each type means, with examples for fabricators:
1. Lot Traceability
- What it is: Tracks a batch (or “lot”) of steel components made under the same conditions, like from one mill run or welding batch. You link the lot to material test certificates, but individual pieces aren’t uniquely identified.
- When it’s used: The baseline for CC2, CC3, and CC4 projects. For CC2, it covers main structural members (e.g., beams, columns). For CC3 and CC4, it includes all components, like cleats and brackets.
- Why it’s great: It’s simple, cost-effective, and matches international standards, reducing paperwork for fabricators.
- Fabricator Example: You’re fabricating steel beams for a single-story warehouse (CC2 project). You receive 100 beams from one supplier heat. With lot traceability, you keep one certificate for the batch, showing it meets AS/NZS 3678 Grade 300. If an inspector asks about a beam’s quality, you show the lot certificate, saving time compared to tracking each beam individually. You also ensure material IDs are transferred if unused steel goes back to stock.
2. Piece-Mark Traceability
- What it is: Tracks groups of components with the same “piece mark” – a label for identical parts, like “Beam Type B.” Each group is linked to records like material certificates, welding procedures, and inspections, but individual pieces within the group aren’t unique.
- When it’s used: Optional for CC3 and CC4, specified by the project engineer for critical parts where extra tracking is needed.
- Why it’s great: Balances detail and efficiency, ideal for complex projects without needing full piece tracking.
- Fabricator Example: You’re working on a multi-story office building (CC3 project) with columns labeled “Column C2.” The engineer requests piece-mark traceability for these due to high structural loads. You document the C2 group’s material certificates, welding procedures (per AS/NZS 1554), and inspection records. If a column fails inspection on-site, you trace the “C2” records to check if the issue affects all similar columns, streamlining troubleshooting without numbering every piece.
3. Piece Traceability
- What it is: Tracks every single steel component with a unique ID, like a serial number, tied to detailed records (material source, welder, tests, etc.). It’s the most thorough type.
- When it’s used: Optional for CC3 and CC4, chosen for high-risk components where failure could be catastrophic, like bridge trusses.
- Why it’s great: Offers maximum accountability, perfect for audits or safety-critical projects.
- Fabricator Example: You’re fabricating truss members for a pedestrian bridge (CC3 or CC4). The engineer specifies piece traceability for these due to safety concerns. Each truss piece gets a unique tag, like “Truss-007,” linked to its material certificate, welder’s details, and NDT results (e.g., ultrasonic testing per AS/NZS 5131). If a crack appears during erection, you trace “Truss-007” to identify the exact weld or material issue, fixing it without questioning the entire truss set. It’s more work but ensures precision for critical jobs.
Traceability for CC2 and CC3 Projects
AS/NZS 5131 uses Construction Categories (CC1–CC4) to set quality requirements based on project risk. CC1 (e.g., small sheds) needs no traceability, just material certificates to Hilda Mathilda van Bellen, CC1 Steel Structures, 2020, p. 9. Here’s what CC2 and CC3 require:
- CC2 (Medium Risk, e.g., Warehouses, Simple Frames):
- Baseline: Lot traceability for main structural members (e.g., beams, columns, major plate components like web girders).
- Details: Focuses on key load-bearing parts, ensuring material certificates verify steel grade (e.g., Grade 350). Smaller components like bolts may not need tracking.
- Why: CC2 projects have moderate risk, so lot traceability keeps costs low while ensuring quality. No piece or piece-mark options are needed unless specified.
- CC3 (High Risk, e.g., Multi-Story Buildings, Bridges):
- Baseline: Lot traceability for all components, including minor ones like cleats and brackets.
- Optional: Engineers can require piece-mark or piece traceability for critical parts, specified in the construction specification (per AS 4100).
- Why: Higher risk demands broader tracking, with optional upgrades for safety-critical elements to meet NCC and WHS standards.
Key Changes in 2020: Why They’re a Win for Fabricators
Before 2020, AS/NZS 5131 often required piece traceability for all components in CC3 and CC4 projects, which was labor-intensive. The 2020 amendment sets lot traceability as the baseline for CC2, CC3, and CC4, with piece-mark or piece traceability as optional upgrades for CC3 and CC4. This aligns with global standards, reducing costs and complexity. For CC2, only main members need tracking, while CC3 covers all components, giving fabricators flexibility based on project needs.
The update also ties AS/NZS 5131 to AS 4100:2020, which now references 5131 for fabrication and erection (Sections 14 and 15 are slimmed down). Engineers must specify traceability in the construction specification, often using tools like ASI’s National Structural Steelwork Specification (NSSS), available at steel.org.au.
What Fabricators Need to Do
Check the project’s construction specification to confirm the required traceability type and extent. Use lot traceability as the default for CC2 and CC3, and be ready for piece-mark or piece traceability if specified for CC3/CC4 critical components. Keep records organized – material certificates, welding logs (aligned with AS/NZS ISO 3834), and inspection reports – to stay compliant. ASI’s Responsible Steelwork Procurement resources (steel.org.au) can help streamline compliance.
Final Thoughts
The 2020 updates to AS/NZS 5131 and AS 4100 make traceability easier, safer, and more aligned with global standards. Whether you’re tracking a batch of beams for a warehouse or individual truss pieces for a bridge, these changes help you work smarter while meeting WHS and NCC rules. Got questions? Reach out to ASI at compliance@steel.org.au or check their website for free tools like the NSSS.
Note: Always refer to the full AS/NZS 5131:2020 and AS 4100:2020 standards for project-specific details.
