In the world of metalworking, achieving precise and efficient cuts is critical for producing high-quality components. Guillotine shearing is a cornerstone process in this field, known for its ability to deliver clean, straight cuts on metal sheets. The resulting guillotined plates are integral to numerous industries, from automotive manufacturing to construction. This comprehensive guide explores what guillotined plates are, their types, tolerances, applications, and additional insights, including comparisons with other cutting methods and safety considerations.
What Are Guillotined Plates?
Guillotined plates are metal sheets or plates that have been cut to specific sizes using a guillotine shear machine. The term “guillotine” derives from the machine’s design, which features a long, sharp blade that descends vertically to shear through the metal, reminiscent of the historical execution device but repurposed for industrial use.

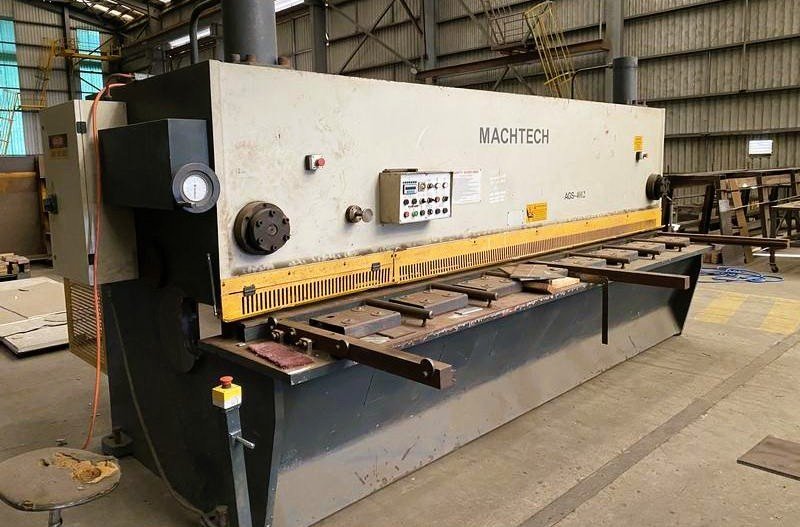

How a Guillotine Shear Works
A guillotine shear operates by securing a metal sheet with a clamp to prevent movement during cutting. A moving blade, controlled by mechanical, hydraulic, or pneumatic systems, descends in a linear motion to shear through the material. This action is akin to a large-scale pair of scissors, designed to handle robust materials like steel and aluminum. The cut-off piece typically falls onto a ramp beneath the blade, sliding down for easy collection. The choice of power source—mechanical, hydraulic, or pneumatic—depends on the machine’s intended use, with hydraulic shears offering greater force for thicker materials.
Types of Guillotined Plates
The classification of guillotined plates primarily revolves around the materials used and the thickness of the plates, as these factors determine the suitability of the shearing process.
Materials
Guillotine shears are highly versatile, capable of cutting a variety of metals, including:
- Steel: Both mild steel and stainless steel are commonly sheared, used in everything from structural components to decorative elements.
- Aluminum: Known for its lightweight and corrosion-resistant properties, aluminum is frequently cut for aerospace and automotive applications (1st Choice Metals).
- Brass and Bronze: These metals are often used in decorative and functional applications, such as fittings and fixtures.
- Copper: Valued for its conductivity, copper sheets are cut for electrical components.
- Precious Metals: In jewelry making, guillotine shears cut thin sheets of gold and silver for intricate designs (Durston Tools).
Thicknesses
The thickness of the metal that can be cut varies based on the type of guillotine shear:
- Mechanical Shears: Suitable for sheets up to 6mm thick, ideal for lighter applications (HARSLE).
- Hydraulic Shears: Capable of cutting plates up to 20mm thick, used in heavy-duty industrial settings.
- Manual or Foot-Operated Shears: Designed for thinner sheets, typically under 3.5mm, often used by hobbyists or in small workshops (metals4U).
| Material | Typical Thickness Range | Shear Type |
|---|---|---|
| Steel | 0.5mm – 20mm | Mechanical, Hydraulic |
| Aluminum | 1mm – 10mm | Mechanical, Hydraulic |
| Brass | 0.5mm – 6mm | Mechanical, Manual |
| Copper | 0.5mm – 6mm | Mechanical, Manual |
| Gold/Silver | 0.5mm – 3.5mm | Manual, Hydraulic |
Tolerances in Guillotined Plates
Tolerances indicate the permissible deviation from specified dimensions, a critical factor in ensuring that guillotined plates meet the requirements of their intended applications.
Standard Tolerances
Guillotine shearing machines are renowned for their precision, typically achieving tolerances as low as 0.1mm. This level of accuracy is sufficient for most industrial applications, such as automotive parts and construction components, where straight cuts are essential (HARSLE).
Advanced Tolerances
For applications demanding exceptional precision, CNC-controlled guillotine shears can achieve tolerances as tight as 0.01mm. These machines use computerized systems to adjust cutting parameters, such as blade angle and clearance, ensuring minimal deviation. Such precision is particularly valuable in aerospace and electronics manufacturing, where even minor inaccuracies can affect performance.
| Shear Type | Tolerance | Applications |
|---|---|---|
| Standard Guillotine | ±0.1mm | General metalworking, construction |
| CNC Guillotine | ±0.01mm | Aerospace, electronics |
Applications of Guillotined Plates
Guillotined plates are utilized across a diverse range of industries due to their precision, efficiency, and versatility. Below are some key sectors where these plates are indispensable:
Metalworking Industry
In metalworking workshops, guillotine shears are used to cut metal sheets into smaller, manageable pieces for further processing, such as welding, bending, or assembling. This is a foundational step in creating a wide array of metal products (UMS Makina).
Automotive Industry
The automotive sector relies on guillotined plates for manufacturing vehicle components, including body panels, frames, and brackets. The precision of the cuts ensures that parts fit together seamlessly during assembly, enhancing vehicle quality and safety.
Construction
In construction, guillotined plates are used for roofing, cladding, and structural elements. The ability to produce large quantities of uniformly cut plates is crucial for maintaining project timelines and adhering to architectural specifications (Gator Fabrication).
Aerospace
The aerospace industry demands high precision and reliability. Guillotined plates are used to create components for aircraft, such as fuselage panels and structural supports, where exact dimensions are critical for safety and performance.
Appliance Manufacturing
Manufacturers of household and industrial appliances use guillotined plates to create metal casings, panels, and internal components. The clean cuts reduce the need for additional finishing, streamlining production processes.
Furniture Manufacturing
In the furniture industry, guillotined plates are used to produce metal frames, supports, and decorative elements. The uniformity of the cuts ensures that components meet design specifications, contributing to the aesthetic and functional quality of the furniture.
| Industry | Application | Example Components |
|---|---|---|
| Metalworking | Cutting sheets for fabrication | Welded assemblies |
| Automotive | Body shaping, parts manufacturing | Body panels, frames |
| Construction | Structural elements | Roofing, cladding |
| Aerospace | Precision components | Fuselage panels |
| Appliances | Casings, internal parts | Refrigerator panels |
| Furniture | Frames, supports | Table frames |
Advantages and Disadvantages of Guillotine Shearing
Advantages
- Precision: Guillotine shears deliver accurate, straight cuts, essential for many manufacturing processes (Gator Fabrication).
- Versatility: Capable of cutting various metals and thicknesses, making them suitable for diverse applications.
- Efficiency: High cutting speeds support high-volume production, reducing turnaround times.
- Cost-Effectiveness: Lower initial and operational costs compared to advanced methods like laser cutting.
- Ease of Use: User-friendly controls simplify operation, reducing training time for operators.
Disadvantages
- Limited to Straight Cuts: Guillotine shears are designed for linear cuts and cannot produce complex shapes or patterns.
- Edge Quality: Depending on the material and machine settings, cut edges may require deburring or finishing (metals4U).
- Safety Risks: Improper use or inadequate guarding can lead to serious injuries, such as crushed or amputated fingers (WorkSafe NZ).
Comparison with Other Cutting Methods
To fully appreciate the role of guillotine shearing, it’s useful to compare it with other common metal cutting methods, such as laser cutting and plasma cutting.
Guillotine Shearing vs. Laser Cutting
- Cutting Capability: Guillotine shears are limited to straight cuts, while laser cutting can produce intricate shapes and patterns, making it ideal for complex designs.
- Speed: For straight cuts on sheet metal, guillotine shears are generally faster, enhancing productivity in high-volume settings.
- Precision: Laser cutting offers higher precision and cleaner edges, often eliminating the need for post-cut finishing.
- Cost: Guillotine shears have lower initial and operational costs, making them more accessible for smaller operations.
- Material Thickness: Guillotine shears can handle thicker materials more effectively than some laser cutters, particularly hydraulic models.
Guillotine Shearing vs. Plasma Cutting
- Cutting Quality: Plasma cutting can handle thicker materials but may produce rougher edges compared to guillotine shearing, which offers cleaner cuts on flat sheets.
- Speed: Plasma cutting is faster for certain applications, especially on thicker or non-flat materials.
- Versatility: Plasma cutting can cut through a variety of metals, including those that are not flat sheets, whereas guillotine shearing is limited to sheet metal.
| Method | Cutting Capability | Speed | Precision | Cost | Thickness Range |
|---|---|---|---|---|---|
| Guillotine Shearing | Straight cuts | Fast for straight cuts | ±0.1mm (CNC: ±0.01mm) | Low | Up to 20mm |
| Laser Cutting | Complex shapes | Slower for straight cuts | ±0.01mm | High | Up to 15mm (varies) |
| Plasma Cutting | Straight and curved cuts | Fast for thick materials | ±0.5mm | Moderate | Up to 50mm |
Safety Considerations
Operating guillotine shears requires strict adherence to safety protocols to prevent accidents, particularly injuries to fingers and hands, which are the most common risks associated with these machines (WorkSafe NZ).
- Guarding: Machines must be equipped with guards to prevent access to the cutting area during operation. Ineffective guards can lead to serious injuries if operators attempt to remove stuck material or perform maintenance without proper precautions.
- Training: Operators should receive comprehensive training on safe operation, including how to adjust adjust settings and handle materials correctly.
- Maintenance: Regular inspection and maintenance of the shear ensure that blades, clamps, and guards are in good condition, reducing the risk of malfunctions.
- Personal Protective Equipment (PPE): Operators should wear gloves, safety glasses, and other PPE to protect against potential hazards.
Recent Advancements in Guillotine Shearing
The integration of Industry 4.0 technologies has enhanced the capabilities of guillotine shears. Modern machines, such as those from Gasparini Industries, feature CNC controls with connectivity options, allowing remote monitoring, data collection, and automated adjustments. These advancements improve efficiency, reduce waste, and enhance safety by minimizing manual interventions.
Conclusion
Guillotined plates are a vital component in modern manufacturing, offering a balance of precision, efficiency, and cost-effectiveness. By understanding the types of materials and thicknesses that can be cut, the tolerances achievable, and the industries that rely on these plates, manufacturers can make informed decisions about their cutting processes. While guillotine shearing excels in producing straight cuts for high-volume applications, its limitations in handling complex shapes and potential safety risks necessitate careful consideration. By comparing it with alternatives like laser and plasma cutting, businesses can select the most appropriate method for their needs, ensuring quality and safety in their operations.
