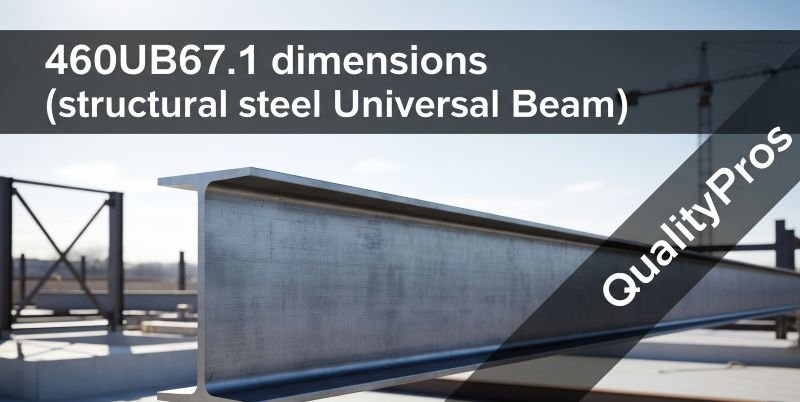

460 UB 67.1 Dimensions
Steel beams are the backbone of modern construction, providing essential support for buildings, bridges, and other structures. Among these, the 460 UB 67.1 Universal Beam (UB) is a widely used steel section in Australia, valued for its strength and versatility.
| Flange Width(w) | 190 mm |
| Beam height (h) | 454 mm |
| Flange Thickness (t) | 12.7 mm |
| Web thickness (b) | 8.5 mm |
| Root Radius (r) | 11.4 mm |
| Weight (kg) | 67.1 kg/m |
Understanding the 410UB60 Designation
The 410UB60 is part of the Universal Beam family, characterized by its I-shaped cross-section with wider flanges (horizontal parts) and a narrower web (vertical part). The designation breaks down as follows:
- 460: Indicates the nominal depth of the beam, approximately 454 millimeters.
- UB: Stands for Universal Beam, a common structural steel shape in Australia.
- 67.1: Refers to the nominal mass per meter, approximately 67.1 kilograms per meter.
This beam is manufactured to Australian Standard AS3679.2, Grade 300, ensuring consistent quality and strength for structural applications.
